Description
Iwata Eclipse Series airbrushes are known for their versatility. Eclipse's high flow allows it to atomize a wider variety of liquids with less need for reducing or thinning. Eclipse Series offers a broad spray range, as compared to other airbrushes, where it is possible to achieve a controlled fine line to controlled wide spray.

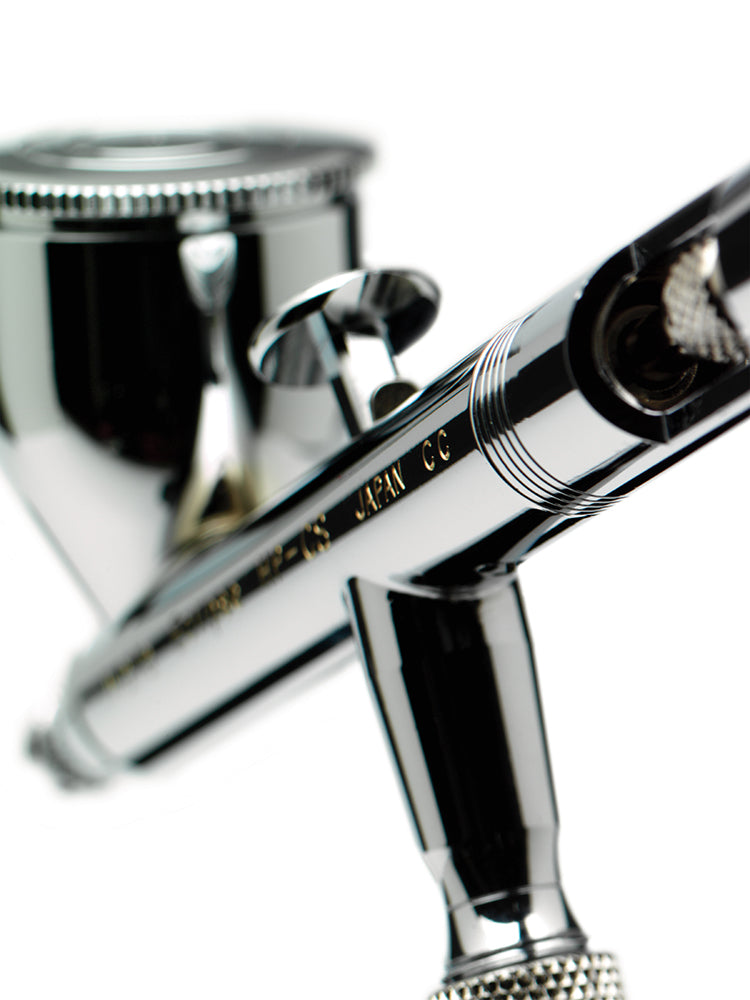

Iwata Eclipse HP-CS Gravity Feed Dual Action Airbrush has a generous 0.24 oz / 7 ml fluid cup with lid that is ideal for color mixing.
Iwata Eclipse Series airbrushes feature an exclusive compression fit nozzle that is easy to clean and assemble. The quick flush cutaway handle allows easy access to the needle so that you can quickly empty the paint reservoir for cleaning. Iwata's spring-steel needle resists breakage and our needle packings are solvent resistant for longevity. Iwata Eclipse airbrushes come with a head cap spanner that is used to remove the head cap when accessing the nozzle. Also included is Iwata Lube, which is used to lubricate the needle and main lever mechanism. Hugely popular, Iwata Eclipse Series airbrushes offer all-star versatility.
All-Star Versatility is one of our 5 Ways to Spray categories. Who sprays with All-Star Versatility? Makers and creators who...
- Spray with fine to wide level of detail and scale
- Want the ease of a drop-in nozzle
- Have beginner to high-level airbrush skills
- Use thin to thicker viscosity or pearlized spray materials
- Are hobbyist or professional painters
- Want to spray many types of things using one airbrush!
Specifications
Spray Performance Category All-Star Versatility
Series Eclipse
Spray Scale Fine to Wide
Optimal Working Pressure 25 - 35 psi (0.17 - 0.24 Mpa)
Head System E3 - Needle, Nozzle, Nozzle Cap
Nozzle Type Compression Fit
Feed Style Gravity
Paint Capacity 0.24 oz (7 ml)
Action Dual
Handle Type Single Cut
Net Weight (lbs) 0.25
Net Weight (kg) 0.11
Assembled Dimensions (in) 1.10 x 6.10 x 2.64
Assembled Dimensions (mm) 28 x 155 x 67

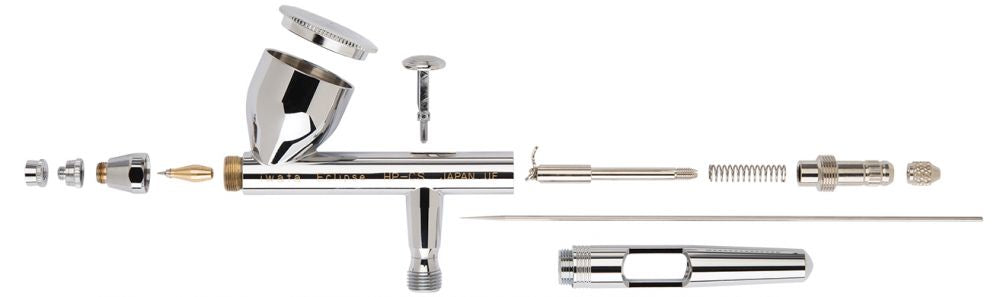

PDF PARTS FOR ECLIPSE : Download
